How Terra Real-Time Streaming Works, and What It Costs

{
  "op": 5,
  "d": {
    "ts": "2022-05-04T10:26:11.268507+01:00",
    "val": 95
  },
  "uid": "user_id_here",
  "seq": 73,
  "t": "HEART_RATE"
}

• t is the data type, here HEART_RATE.
• d.ts is when the reading happened.
• d.val is the value, 95 BPM.
• uid is the Terra user ID of the athlete.
• seq is a cursor. It orders messages and lets you recover the ones you missed. It's sparse, so gaps between values are normal and don't mean you lost data.

That's the whole format. Other data types use the same envelope. Single-value types like steps or calories put their number in d.val. Multi-axis types put an array in d.d instead: [x, y, z] for accelerometer and gyroscope, [lat, lng] for location.

One thing to notice. If the athlete is wearing a watch that sends both heart rate and location, those come through as two separate DISPATCH messages with two separate sequence numbers, not one bundled message. Remember that when we get to pricing.

Staying connected

Your backend holds one WebSocket. Three things to get right.

Heartbeats. When the socket opens, Terra tells you the heartbeat interval. Send one within that interval or the connection drops.

Tokens. Auth is a short-lived, single-use developer token. Mint a new one for every connection. Don't cache them, don't reuse them.

Replay. Store the seq of the last message you processed. If the socket drops, reconnect, wait for the first live message, and ask Terra to replay everything between your stored cursor and that one. A network blip during a race becomes a gap you fill in, not data you lost. This is the step people skip when prototyping and regret in production.

When to stream

One question: does the data lose its value if it arrives after the activity ends? If yes, stream. If no, don't.

Yes: live race tracking, event dashboards, a coach watching a group's heart rates mid-session, threshold alerts, training or rehab products that react to the data as it comes in, research protocols collecting raw sensor data.

No: anything about a finished workout, sleep, recovery, or a daily summary. Streaming would be a bad way to get those, and the standard API is already good at it.

Pricing

Streaming is a $99/month add-on to any Terra plan, and it includes 20,000 streaming credits a month. Credits reset each cycle.

Each athlete who streams during the month uses 1,000 credits. That covers their first 16,000 messages, which is just under 4.5 hours at one reading a second. Past that, each extra message is 1/16 of a credit. The allowance is per athlete, so one athlete's unused messages don't cover another's.

In practice: a 4-hour race streaming heart rate is 1,000 credits per athlete. The same race streaming heart rate and location is 1,800, because that's two messages a second, not one. Duration is cheap. Metrics multiply.

Beyond the 20,000 included credits, extra credits are $0.005 each, dropping to $0.003 past 1,000,000 in a month. Streams keep running when you go over. You're billed for the extra at the end of the cycle.

What a marathon costs (example)

200 tracked runners, heart rate and location once a second, average finish 4:30. Each runner works out to about 2,025 credits, or roughly $10. For the whole field, the month's bill is $2,024, including the $99 add-on, with the 20,000 included credits taking $100 off the top. About $10 a runner for live heart rate and a live position on the map for the full race.

To estimate your own: count athletes, hours per athlete, and messages a second. One for a single metric, two for heart rate plus GPS, unless your device testing says otherwise. Apply the 16,000-message allowance to each athlete, add 1,000 credits each, and price anything past 20,000 at $0.005.

Building it: Terra Real-Time SDK plus WebSocket

1. Add the Terra RT SDK to your iOS or Android app.
2. Generate an SDK auth token from your backend.
3. Connect the athlete's wearable or phone/watch sensor.
4. Generate a producer token and start streaming from the app.
5. Generate a developer token and open the WebSocket from your backend.
6. Handle DISPATCH messages.
7. Persist the latest seq so you can replay after a disconnect.
8. Test with Terra's synthetic streaming users first, then real devices.

The short version

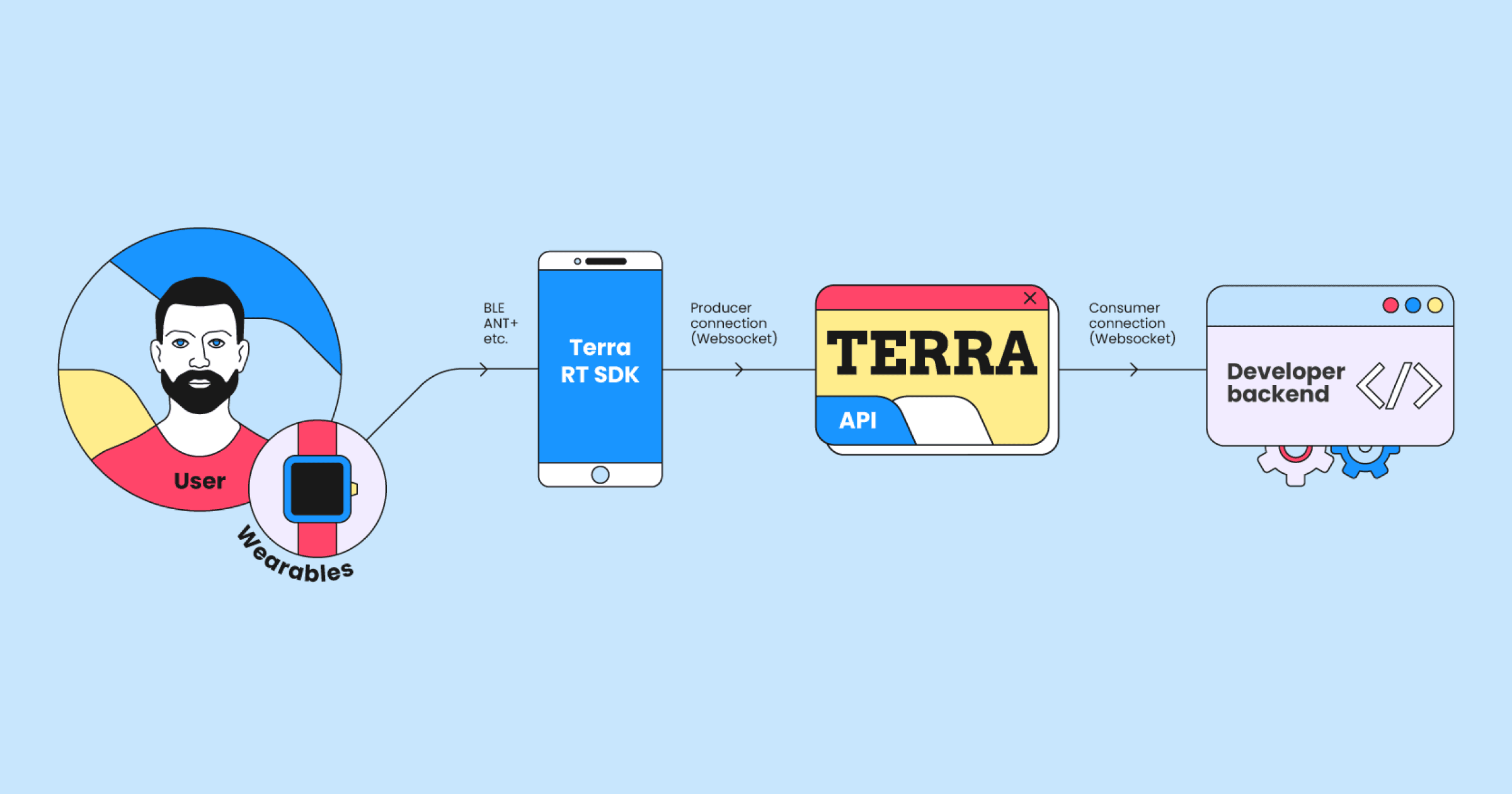

• Streaming delivers device readings while the activity is happening, via the RT SDK in your app and a WebSocket in your backend.
• $99/month, 20,000 credits included. Enough for 20 athletes at just under 4.5 hours each.
• Each active athlete is 1,000 credits, with 16,000 messages included before overage starts.
• Duration is cheap. Metrics multiply. HR + GPS is two messages, not one.
• Price on measured cadence, not assumptions.
